Construction tools · Wire saw
Masonry
Diamond wires with sintered beads for portable construction wire saws – for masonry. Available in any length.
Made in
Germany
Germany
Bead ØØ 11 / 15 mm
Beads per metre40
Operating modeWet
Suitable for
Wire saw
Types and versions
Wire for masonry
- Sintered bead
- Plastic-coated with spring
- Wet cutting
- available in any length
| Type | Bead Ø | Beads/m | Property |
|---|---|---|---|
| MS s 256 | 11 mm | 40 | Designed for long tool life |
| MS T2 | 15 mm | 40 | Masonry with a high proportion of natural stone |

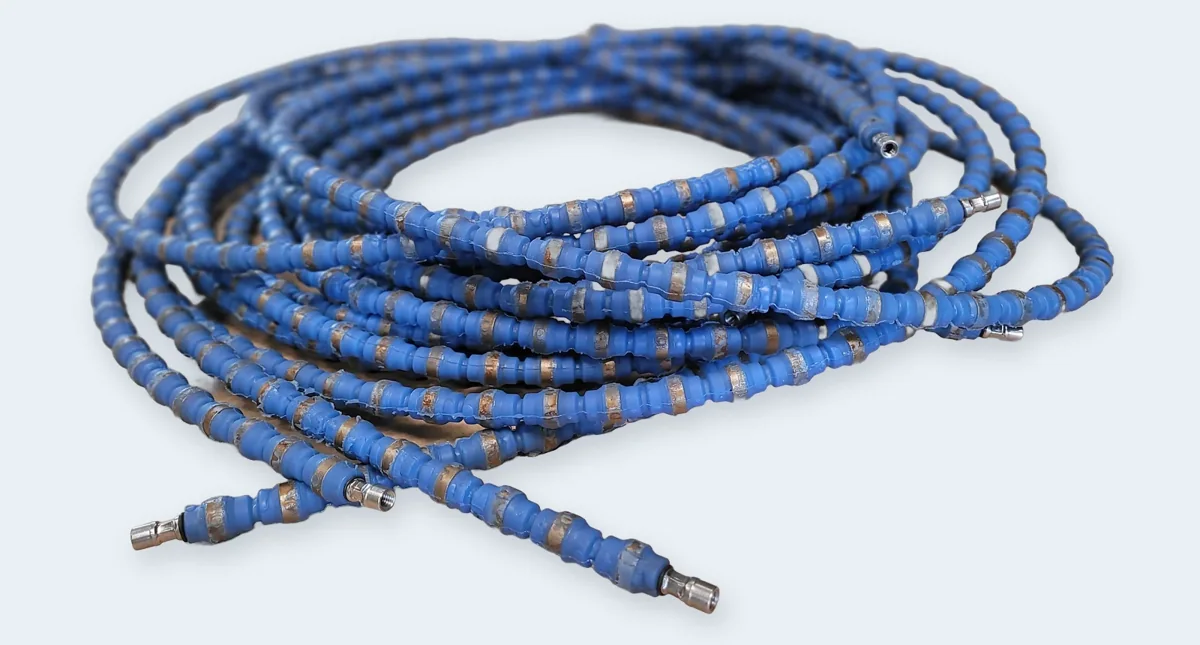

| MS T3 | 15 mm | 40 | Designed for long tool life, for abrasive materials |

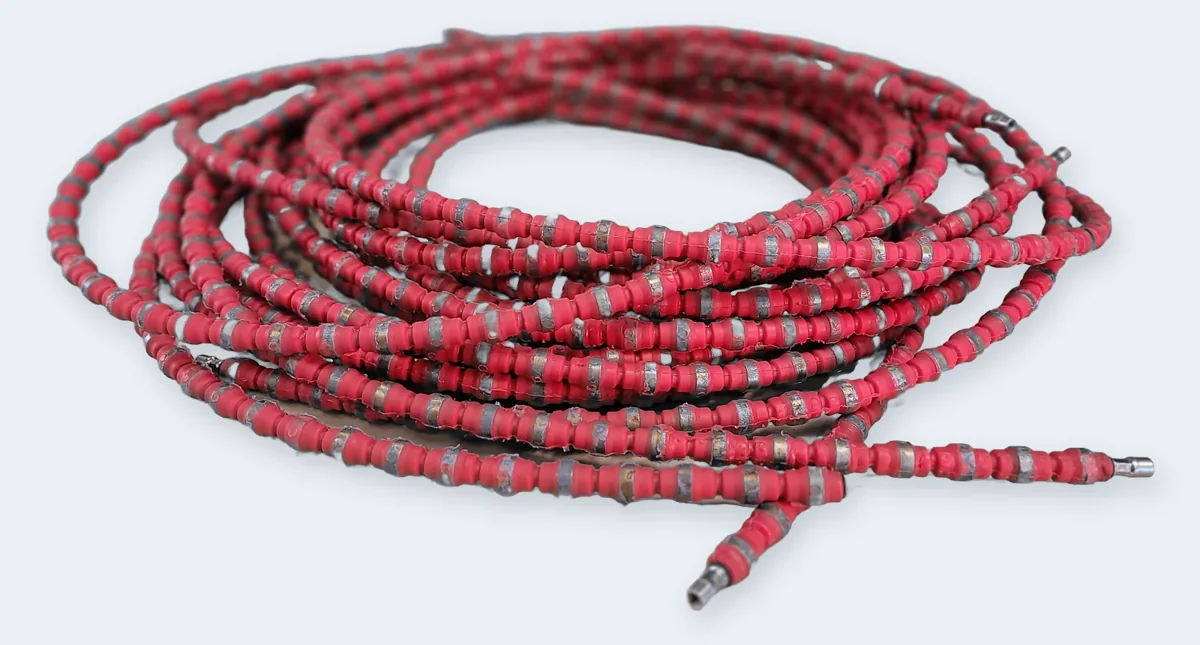

| MS T4 | 15 mm | 40 | |
| MS 398 | 15 mm | 40 | Good balance of free cutting and tool life |
- Note: the operating parameters and wire properties vary depending on the material and machine type.
Suitable connectors
Press connectorØ 8.5 / 11 mm · steel or copper
Screw connectorØ 8.5 / 11 mm · steel
Joint connectorØ 11 / 15 mm · standard and cardan
Splicing of wire endsService in our own factoryEnquiries and ordersCustomers can find technical data sheets in the customer area.
